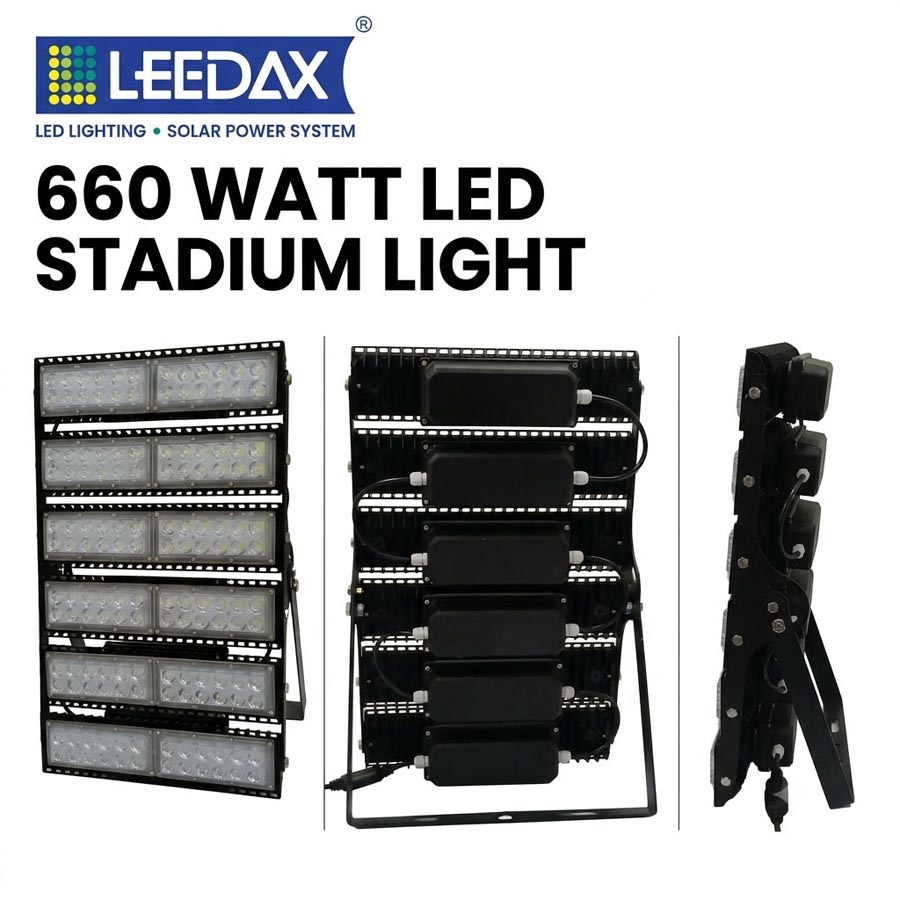

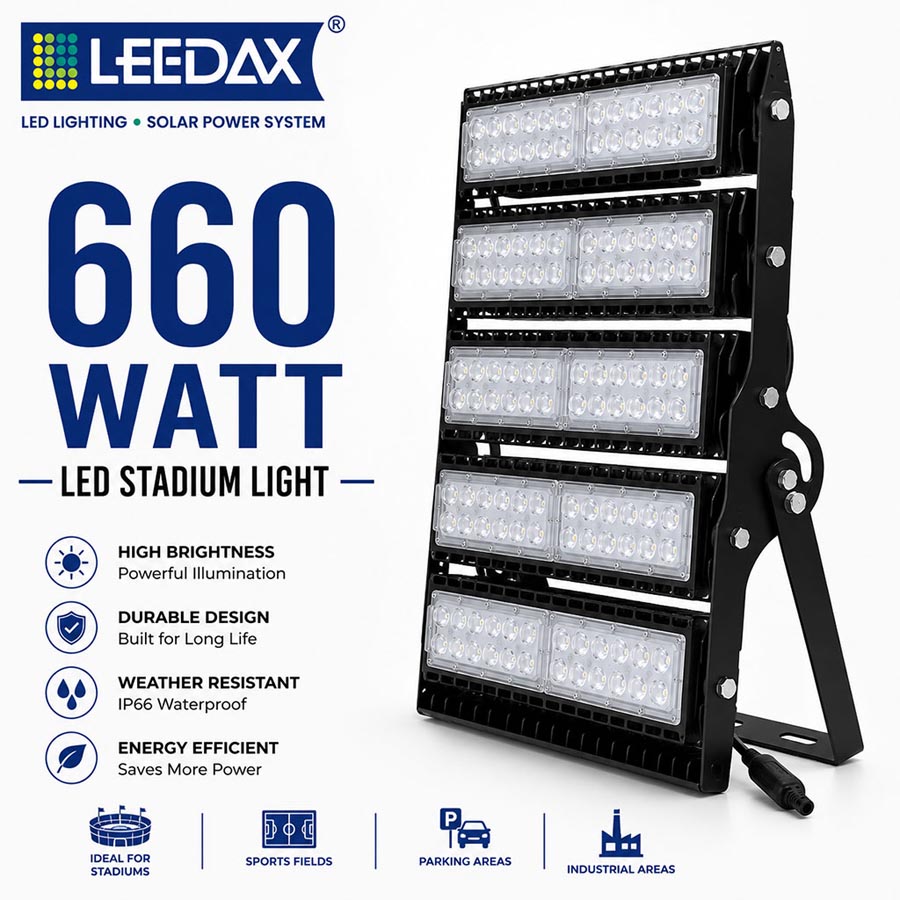

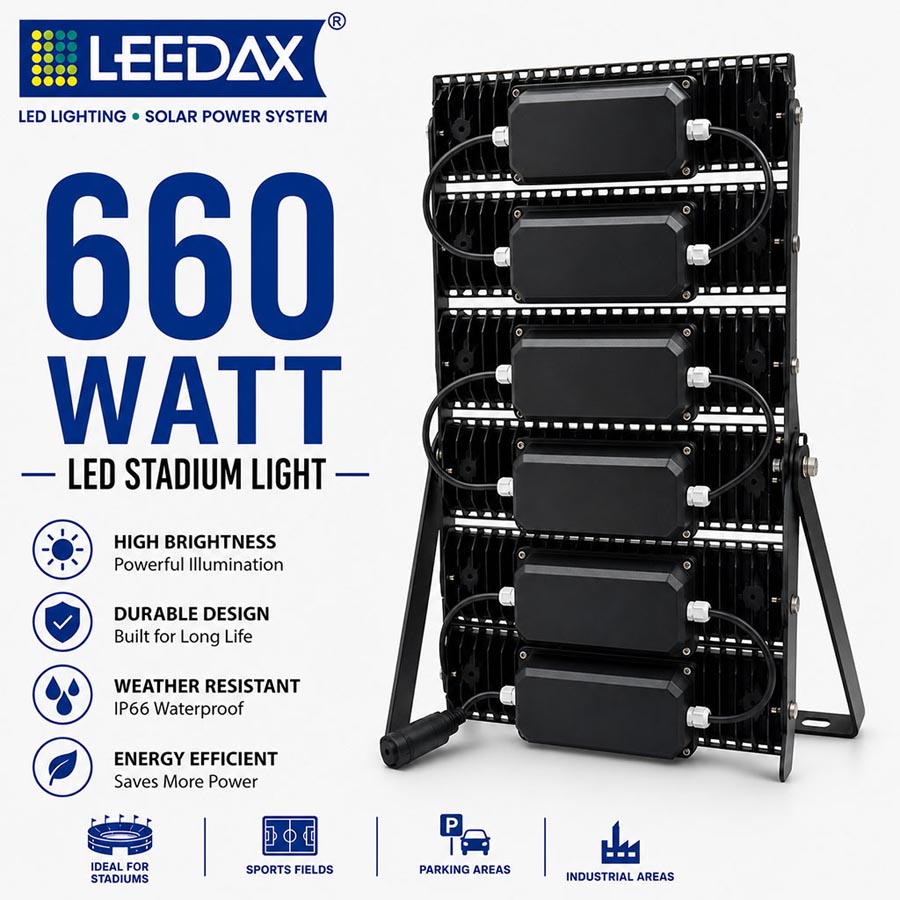

Large stadiums, sports complexes, outdoor event venues and industrial mega-sites require lighting that can deliver exceptional brightness across vast distances while maintaining uniform illumination and dependable long-term performance. The LEEDAX 660 Watt LED Stadium Light Luminary is engineered specifically for these demanding high-output lighting applications.
With a powerful 660 Watt system power consumption and an initial LED lumen output range of 77,880–82,500 lumens, this high-intensity LED Stadium Light is designed for major stadiums, flagship sports facilities, large outdoor grounds and high-mast lighting applications where conventional lighting solutions may not provide the required illumination and beam reach.
The LEEDAX 660W LED Stadium Light combines a densely engineered LED array with precision optics to convert high electrical power into strong, usable and far-reaching illumination. Its 20° / 60° / 90° selectable LED module view angles, together with a 120° internal LED beam view angle, provide flexibility for different lighting layouts and throw-distance requirements.
Designed for demanding outdoor environments, the fixture features IP66 protection, an aluminium pressure die-cast body and optical-grade PC covering. Heavy-duty surge protection above 6 KVA and over-voltage protection up to 440V AC provide additional electrical protection, while a power factor above 0.95 and THD below 10% support efficient electrical performance.
With a 50,000-hour LED lifespan, driver efficiency above 85% and LM-80 report availability, the LEEDAX 660 Watt LED Stadium Light offers a durable and high-performance lighting solution for major sports, infrastructure and industrial projects.
| Product Code | LXFLHP660BX-LN-CW |
| System Power Consumption | 660 Watts |
| Initial LED Lumen Output Range | 77,880 – 82,500 Lm |
| Surge Protection | > 6 KVA |
| Power Factor | > 0.95 |
| THD | < 10% |
| Colour Temperature Range | 3000K / 4000K / 6500K |
| Colour Rendering Index | 70–80 CRI |
| Internal LED Beam View Angle | 120° |
| LED Module View Angle | 20° / 60° / 90° |
| Standard Operating Temperature | -10°C to +65°C |
| Standard Input Voltage | 230V AC |
| Input Working Voltage Range | 145–270V AC |
| Over Voltage Protection | 440V AC |
| IP Protection | IP66 |
| LED Life Span | 50,000 Hours |
| LED LM-80 Report | Available |
| Driver Efficiency | > 85% |
| Body Type | Aluminium Pressure Die Cast |
| Covering | Optical Grade PC |
| Covering Luminous Transmission | 85–90% |
| Covering Refractive Index | 1.584 |
| Covering Flammability | HB / V-0 (UL94) |
| Performance | Soft Narrow Beam with Good Illuminance |
| Application | Stadium Lighting, Outdoor Lighting, Construction |
| Tolerance (+/-) | 10% on all above values |
The LEEDAX 660 Watt LED Stadium Light incorporates high-output LED technology, precision optical engineering, heavy-duty construction and electrical protection features to address the requirements of large-scale stadium and outdoor lighting projects.
High-Capacity Lumen Output
With an initial LED lumen output range of 77,880–82,500 lumens, the 660W LED Stadium Light is designed for applications requiring powerful illumination across extensive areas and long distances.
Flexible Beam Control
The fixture incorporates a 120° internal LED beam view angle with selectable 20°, 60° and 90° LED module view angles. This allows lighting designers to select an appropriate beam configuration according to the required coverage and throw distance.
Advanced Anti-Glare Optical Design
Precision optical engineering helps control glare while maintaining strong illumination. This is particularly important for stadiums, sports facilities and large public venues where visual comfort is an important consideration.
Heavy-Duty Die-Cast Housing
The reinforced aluminium pressure die-cast body, with a stated weight of 11.4 kg, provides structural rigidity and supports heat dissipation for this high-power lighting application.
IP66 Weatherproof Protection
The IP66-rated construction is designed for demanding outdoor environments, including exposure to rain, humidity and dust.
High Electrical Efficiency
Power factor above 0.95, THD below 10% and driver efficiency above 85% support stable and efficient electrical operation.
Strong Surge and Voltage Protection
Surge protection above 6 KVA and over-voltage protection up to 440V AC provide additional protection for installations exposed to electrical fluctuations.
Long Operating Life
A 50,000-hour LED lifespan helps reduce replacement requirements and maintenance interruptions in large installations where lighting fixtures may be installed at significant heights.
The LEEDAX 660 Watt LED Stadium Light Luminary is designed to provide a combination of high illumination, long-term durability, optical flexibility and reliable electrical performance for large-scale lighting projects.
Powerful Illumination for Large Areas
The high lumen output of 77,880–82,500 lumens makes the 660W LED Stadium Light suitable for large stadiums, outdoor grounds, industrial sites and other applications where substantial illumination is required.
Long-Distance Lighting Capability
The selectable 20°, 60° and 90° module view angles allow the lighting system to be configured for different beam-reach requirements. This provides greater flexibility when illuminating large fields, stands, grounds and perimeter areas.
Improved Lighting Uniformity
Precision optics are designed to distribute usable light across extensive areas and help reduce dark zones and inconsistent illumination, supporting better visibility across large venues.
Reduced Maintenance Requirements
The 50,000-hour LED lifespan can reduce the frequency of lamp replacement and maintenance activities. This is particularly valuable for stadium floodlighting and high-mast installations where servicing may require specialised access equipment.
Reliable Outdoor Performance
IP66 protection, a heavy-duty aluminium die-cast body and optical-grade PC covering make the fixture suitable for demanding outdoor environments.
Efficient Electrical Operation
A power factor above 0.95, THD below 10% and driver efficiency above 85% contribute to efficient electrical performance, which can be important when multiple high-power fixtures are installed across a large venue.
Enhanced Operational Reliability
Surge protection above 6 KVA and over-voltage protection up to 440V AC provide additional electrical protection in installations where power fluctuations may occur.
Suitable for Professional Lighting Projects
The combination of high output, optical flexibility, robust construction and long operating life makes the LEEDAX 660W LED Stadium Light suitable for professional stadium, infrastructure, construction and industrial lighting projects.
The LEEDAX 660 Watt LED Stadium Light Luminary is designed for high-capacity lighting applications where large areas, long distances and high illumination requirements make high-output LED floodlighting essential.
Major National and International Stadiums
The 660W LED Stadium Light is suitable for large football, cricket and multi-sport stadiums requiring powerful illumination across playing fields, spectator areas and surrounding infrastructure.
Flagship Sports Complexes
Professional sports complexes and elite training facilities can use high-output LED stadium lighting for extensive fields and training areas requiring strong and consistent illumination.
Broadcast and Tournament Venues
Large tournaments and high-profile sporting events require reliable lighting and good colour rendering. The LEEDAX 660W Stadium Light can be used for venues requiring high-intensity illumination for event and broadcast environments.
Large Civic and Public Grounds
Exhibition centres, civic grounds, public event spaces and large outdoor venues can benefit from the high-output and long-distance illumination capability of this LED Stadium Light.
Heavy Industrial Mega-Sites
The product is also suited to large mining operations, ports, railway yards, construction areas and industrial mega-complexes requiring high-output night-time lighting.
Large Parking and Outdoor Event Areas
Large-format parking areas, festival grounds and outdoor mega-event zones can use high-output stadium lighting to achieve extensive area coverage.
High-Mast Lighting
The 660 Watt LED Stadium Light is suitable for high-mast installations where powerful illumination and long beam reach are required across large outdoor areas.
Perimeter and Security Lighting
Large restricted zones, industrial boundaries, infrastructure sites and extended perimeter areas can use high-output LED lighting for dependable night-time visibility.
Construction and Infrastructure Projects
The product can also be used for large construction sites and infrastructure projects requiring powerful temporary or permanent outdoor illumination.
