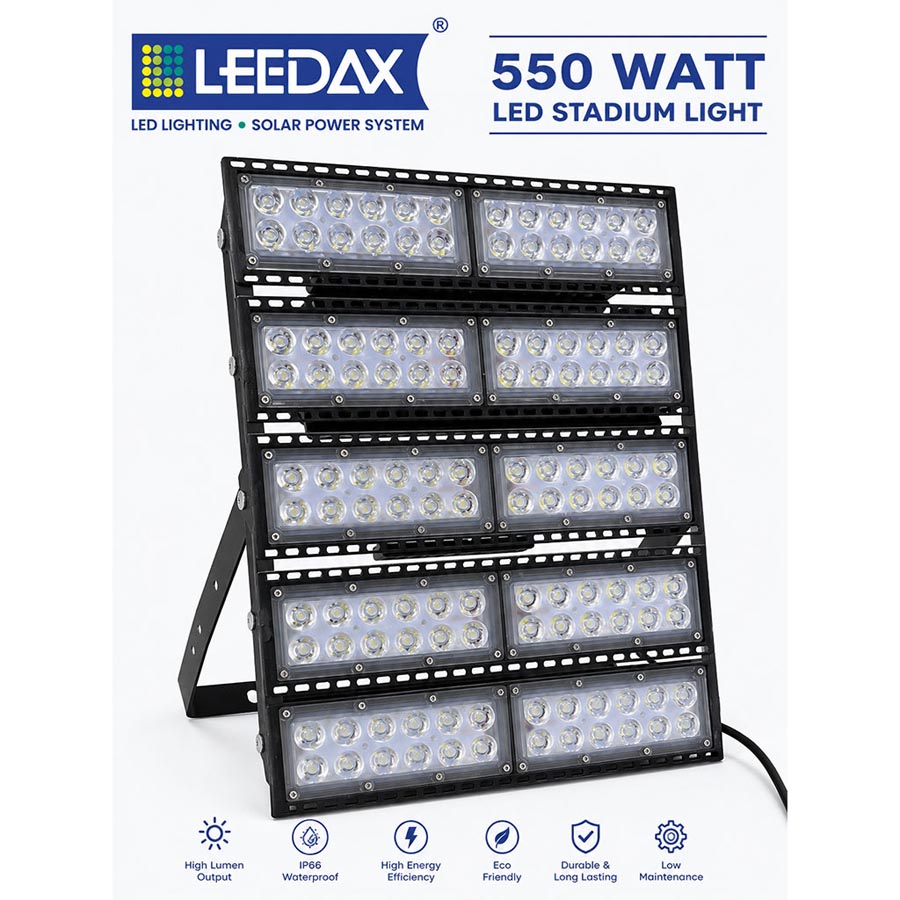

Large stadiums, sports complexes, outdoor venues and expansive infrastructure sites require lighting systems capable of delivering high-intensity illumination across considerable distances while maintaining brightness, uniformity and visual clarity. The LEEDAX 550 Watt LED Stadium Light Luminary is engineered specifically for such demanding large-area lighting requirements.
With a system power consumption of 550 Watts and an initial LED lumen output range of 64,900–68,750 lumens, this high-output LED stadium light is designed to provide powerful illumination for large stadium footprints and extensive outdoor areas. The fixture combines a high-density LED array with precision-engineered optics to deliver strong, far-reaching and usable brightness.
The LEEDAX 550W LED Stadium Light features an internal LED beam view angle of 120°, with selectable 20°, 60° and 90° LED module view angles, allowing the lighting configuration to be suited to different long-throw and area-coverage requirements. Its optical design is developed to support good illuminance while reducing excessive glare in demanding outdoor applications.
Built for challenging environments, the luminary incorporates an aluminium pressure die-cast body, optical-grade PC covering and IP66 protection, providing a weatherproof and dust-tight construction suitable for outdoor installation. The 550W LED Stadium Light also provides surge protection above 6 KVA, over-voltage protection up to 440V AC, power factor above 0.95 and THD below 10%.
| Product Code | LXFLHP550BX-LN-CW |
| System Power Consumption | 550 Watts |
| Initial LED Lumen Output Range | 64,900 – 68,750 Lm |
| Surge Protection | > 6 KVA |
| Power Factor | > 0.95 |
| THD | < 10% |
| Colour Temperature Range | 3000K / 4000K / 6500K |
| Colour Rendering Index | 70–80 CRI |
| Internal LED Beam View Angle | 120° |
| LED Module View Angle | 20° / 60° / 90° |
| Standard Operating Temperature | -10°C to +65°C |
| Standard Input Voltage | 230V AC |
| Input Working Voltage Range | 145–270V AC |
| Over Voltage Protection | 440V AC |
| IP Protection | IP66 |
| LED Life Span | 50,000 Hours |
| LED LM-80 Report | Available |
| Driver Efficiency | > 85% |
| Body Type | Aluminium Pressure Die Cast |
| Covering | Optical Grade PC |
| Covering Luminous Transmission | 85–90% |
| Covering Refractive Index | 1.584 |
| Covering Flammability | HB / V-0 (UL94) |
| Performance | Soft Narrow Beam with Good Illuminance |
| Application | Stadium Lighting, Outdoor Lighting, Construction |
| Tolerance (+/-) | 10% on all above values |
The LEEDAX 550 Watt LED Stadium Light Luminary combines high-output LED technology, precision optics and heavy-duty construction to provide dependable illumination for large stadiums, sporting venues, infrastructure projects and demanding outdoor applications.
High Lumen Output:
The fixture delivers an initial LED lumen output of 64,900–68,750 lumens, providing powerful illumination for large-area applications where lower-output lighting may not be sufficient.
Long-Throw Optical Performance:
The internal LED beam view angle is 120°, with selectable 20°, 60° and 90° module view angles, supporting different beam distribution and long-distance lighting requirements.
Soft Narrow Beam Performance:
The optical system is designed to provide a soft narrow beam with good illuminance, making it suitable for applications requiring focused and effective light delivery.
Anti-Glare Optical Design:
The optical configuration is designed to help manage glare while maintaining strong illumination for sports venues and outdoor environments.
IP66 Weatherproof Protection:
The IP66-rated construction provides protection suitable for demanding outdoor conditions involving dust, rain and humidity.

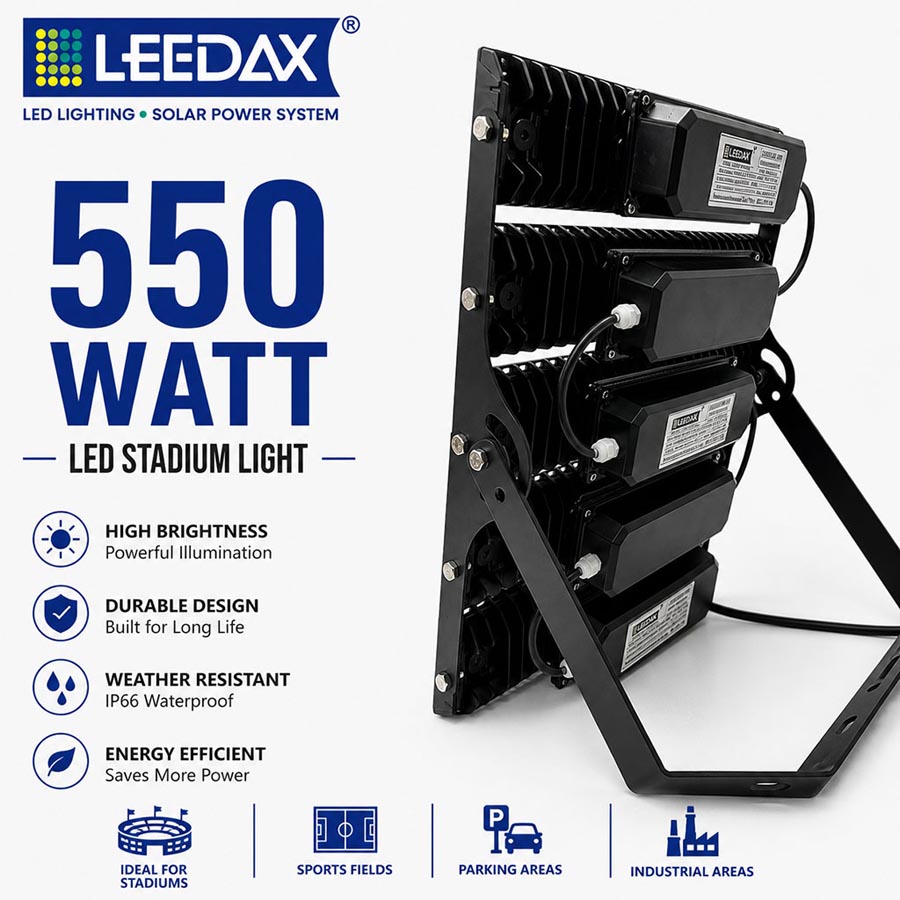

Heavy-Duty Aluminium Die-Cast Body:
The robust aluminium pressure die-cast construction provides structural strength and supports thermal management at the higher 550W power level.
50,000-Hour LED Life:
The long rated LED lifespan helps reduce replacement frequency and maintenance requirements.
High Driver Efficiency:
Driver efficiency exceeding 85% supports efficient operation even at the higher power output.
High Power Factor & Low THD:
Power factor above 0.95 and THD below 10% support clean and stable electrical performance.
Strong Electrical Protection:
Surge protection above 6 KVA and over-voltage protection up to 440V AC provide additional protection against demanding electrical conditions.
Multiple Colour Temperature Options:
Available in 3000K, 4000K and 6500K, allowing selection according to project requirements.
LM-80 Documentation Available:
Available LM-80 documentation provides supporting information relating to LED lumen maintenance.
Selecting the correct stadium lighting system is essential for achieving adequate illumination across large playing fields, spectator areas, outdoor venues and infrastructure spaces. The LEEDAX 550 Watt LED Stadium Light is designed to provide a combination of high lumen output, long-distance light delivery, durability and dependable electrical performance.
1. High-Intensity Illumination:
With an initial output of 64,900–68,750 lumens, the 550W LED Stadium Light provides powerful illumination for large-scale outdoor applications.
2. Extended Lighting Reach:
Selectable LED module view angles of 20°, 60° and 90° provide flexibility for different beam distribution and long-throw lighting requirements.
3. Improved Area Coverage:
The optical system is designed to distribute usable brightness across expansive stadium footprints, outdoor grounds and large industrial areas.
4. Reduced Maintenance:
A rated LED lifespan of 50,000 hours can reduce the frequency of replacement and maintenance, particularly where fixtures are installed at significant heights.
5. Reliable Outdoor Performance:
The IP66 protection makes the fixture suitable for demanding outdoor environments requiring protection against dust and water exposure.
6. Robust Mechanical Construction:
The aluminium pressure die-cast body provides a strong and durable structure suitable for heavy-duty lighting installations.
7. Efficient Power Utilisation:
Driver efficiency above 85%, power factor above 0.95 and THD below 10% contribute to efficient electrical operation.
8. Protection from Electrical Fluctuations:
Surge protection above 6 KVA and over-voltage protection up to 440V AC provide additional protection for reliable operation.
9. Flexible Lighting Configuration:
Multiple colour temperature options and selectable module beam angles provide greater flexibility during project planning.
10. Suitable for Large-Scale Projects:
The high-output configuration makes this fixture suitable for stadiums, sports complexes, industrial facilities, construction sites, parking areas and other expansive outdoor spaces.
Overall, the LEEDAX 550W LED Stadium Light provides a powerful combination of high lumen output, long-throw capability, weatherproof construction, energy-efficient operation and long service life.
The LEEDAX 550 Watt LED Stadium Light Luminary is designed for large-scale sports, outdoor, industrial and infrastructure lighting applications where high-intensity illumination and extended lighting reach are required. Its high lumen output, selectable optical configurations, IP66 protection and heavy-duty construction make it suitable for demanding environments.
State & National-Level Stadiums:
Suitable for major football, cricket and multi-sport stadiums requiring powerful illumination across large playing and spectator areas.
Large Sports Complexes:
Can be used in professional sports facilities, training centres and competitive sports grounds requiring strong and uniform lighting.
Night-Time Sports & Tournaments:
The high-output LED configuration can support large sporting events and night-time fixtures where dependable visibility is essential.
Outdoor Event Venues:
Suitable for expansive event grounds, exhibition areas, public venues and large-format outdoor gathering spaces.
Large Public Grounds:
Can be considered for city parks, civic grounds and other large outdoor spaces requiring broad-area illumination.
Industrial & Infrastructure Sites:
The 550W LED Stadium Light is suitable for large industrial complexes, mining areas, ports, railway yards and other infrastructure locations requiring high-output night lighting.
Construction Sites:
The fixture can be used for large construction areas where powerful outdoor illumination is required for operations and site visibility.
Large Parking & Event Zones:
Suitable for expansive parking areas, fairgrounds, festival grounds and other large outdoor zones.
High-Security Perimeter Lighting:
Its long-throw lighting capability makes it suitable for large industrial campuses, restricted zones and high-security outdoor areas where extended-distance illumination is required.
Large Outdoor Lighting Projects:
The fixture can form part of large-scale outdoor lighting systems requiring high lumen output, durable construction and reliable long-term performance.
The LEEDAX 550 Watt LED Stadium Light is therefore well suited for stadiums, sports complexes, outdoor venues, industrial sites, construction projects, ports, railway yards, parking areas and large infrastructure applications where high-output and dependable LED lighting is required.
