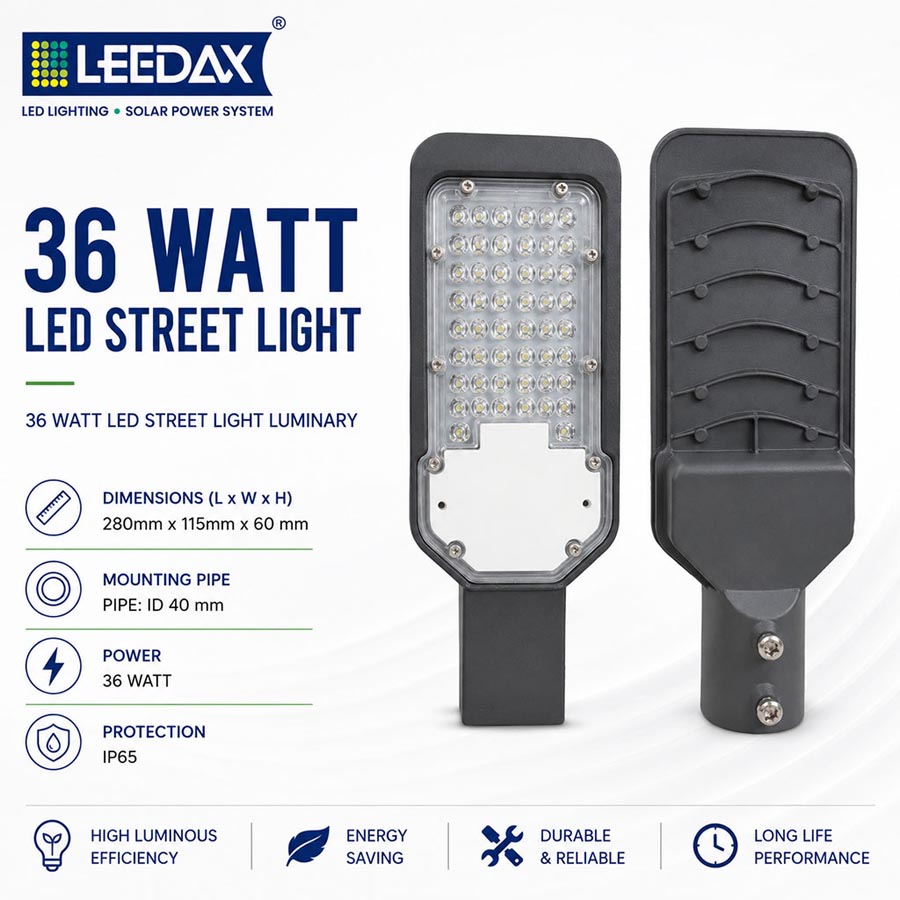

The LEEDAX 36 Watt LED Street Light Luminary is a mid-wattage outdoor lighting solution designed to provide stronger illumination and wider coverage for roads, pathways, residential colonies, townships, commercial areas and other outdoor applications. With a system power consumption of 36 Watts, this LED Street Light provides a practical step up from lower-wattage street lights while maintaining an energy-efficient and cost-conscious lighting solution.
The LEEDAX 36 Watt LED Street Light, Model LXSTLLP36BX-LN, is designed and assembled in India using LM80-certified LED technology housed within a robust aluminium pressure die-cast body. This construction provides the fixture with the physical durability and thermal management required for outdoor operation across changing weather conditions, including heat, dust and monsoon conditions.
The 36W LED Street Light is particularly suitable where wider roads and larger areas require more illumination than a compact street light can provide, but where a higher-wattage luminary would be unnecessary. It therefore provides a practical balance between brightness, energy consumption, reliability and overall project cost.
With a wide input voltage range of 145–265V AC, power factor above 0.9 and THD below 10%, the fixture is designed for stable electrical operation. Optional IP65/IP66 protection provides additional protection against dust and moisture for outdoor applications.
The LEEDAX 36 Watt LED Street Light is available in 3000K, 4000K, 5000K and 6500K colour temperature options and provides CRI greater than 80 for accurate and natural colour rendering.
As a 36 Watt LED Street Light Manufacturer and Supplier in India, LEEDAX provides a Made in India lighting solution for municipal, infrastructure, residential, commercial, institutional and industrial road-lighting requirements.
| Item | LED Street Light Luminary |
| Model Number | LXSTLLP36BX-LN |
| System Watt | 36 Watts |
| Input | 230 Volt AC |
| Input Voltage Range | 145 – 265 Volt AC |
| Over Voltage Protection | Up to 440 Volt AC |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | Less than 10% |
| Body | Aluminium Pressure Die Cast |
| Mounting | On Pole |
| Color Temperature | 3000K / 4000K / 5000K / 6500K |
| LED Certification | LM80-Certified LED |
| CRI (Color Rendering Index) | >80 |
| Covering | PC Lens |
| IP Protection | IP65 / IP66 (Optional) |
| Manufacturer/Make | LEEDAX |
| Country of Origin | Made in India |
| Tolerance (+/-) | 10% on all above parameters |
The LEEDAX 36 Watt LED Street Light combines efficient LED technology, durable construction and flexible electrical performance to provide dependable illumination for roads, townships, commercial areas and institutional campuses.
36 Watt Mid-Wattage Design: The fixture provides a practical lighting option between lower-wattage and higher-wattage street lights, making it suitable for applications requiring additional brightness and coverage without unnecessarily increasing power consumption.
LM80-Certified LED Technology: The use of LM80-certified LED technology supports dependable lumen maintenance and long-term LED performance.
Aluminium Pressure Die-Cast Body: The robust aluminium die-cast construction provides strength and effective thermal management for outdoor operating conditions.
Wide Input Voltage Range: The 36W LED Street Light operates across a 145–265V AC input voltage range, supporting stable operation in areas where supply voltage can vary.
High Power Factor: A power factor above 0.9 supports efficient electrical power utilization.
Low THD: THD below 10% supports cleaner electrical operation and reduced harmonic distortion.
Over-Voltage Protection: Protection up to 440V AC provides additional electrical protection against specified over-voltage conditions.
Multiple Colour Temperature Options: The product is available in 3000K, 4000K, 5000K and 6500K, providing flexibility for different road and outdoor lighting requirements.
High Colour Rendering: CRI greater than 80 supports accurate and natural colour rendering, improving visibility of objects, vehicles and surroundings.
Optional IP65/IP66 Protection: The optional IP-rated protection provides enhanced resistance against dust and moisture for outdoor installations.
Pole-Mounted Installation: The fixture is designed for straightforward pole-mounted street lighting applications.
Made in India: LEEDAX designs and assembles the product in India, providing a locally manufactured LED street lighting solution.
The LEEDAX 36 Watt LED Street Light Luminary offers a balanced combination of illumination, energy efficiency, durability and cost-effectiveness for a wide range of road and outdoor lighting projects.
One of its key benefits is its balanced power-to-brightness performance. The 36 Watt configuration provides more coverage than lower-wattage fixtures while keeping electrical consumption comparatively modest. This makes the 36W LED Street Light particularly suitable for secondary roads, township roads, residential colony roads and commercial access roads.
The use of LM80-certified LED technology supports dependable lumen maintenance over the operational life of the LED system. Combined with the robust aluminium pressure die-cast body, the fixture is designed for long-term outdoor operation.
Its 145–265V AC input voltage range allows the street light to operate across a broad range of supply conditions. Power factor above 0.9 contributes to efficient power utilization, while THD below 10% supports cleaner electrical performance.
The optional IP65/IP66 protection provides enhanced protection against dust and moisture, making the fixture suitable for demanding outdoor conditions. Over-voltage protection up to 440V AC provides an additional level of electrical protection.
The availability of **four colour temperature options—3000K, 4000K, 5000K and 6500K—**allows project planners to select a suitable lighting appearance according to the application.
The fixture’s aluminium die-cast construction provides durability while supporting thermal management. Its pole-mounted configuration also allows straightforward integration into street lighting infrastructure.
For municipal bodies, EPC contractors, real estate developers, institutions and industrial users, the LEEDAX 36 Watt LED Street Light offers a practical mid-wattage, energy-efficient and Made in India street lighting solution.

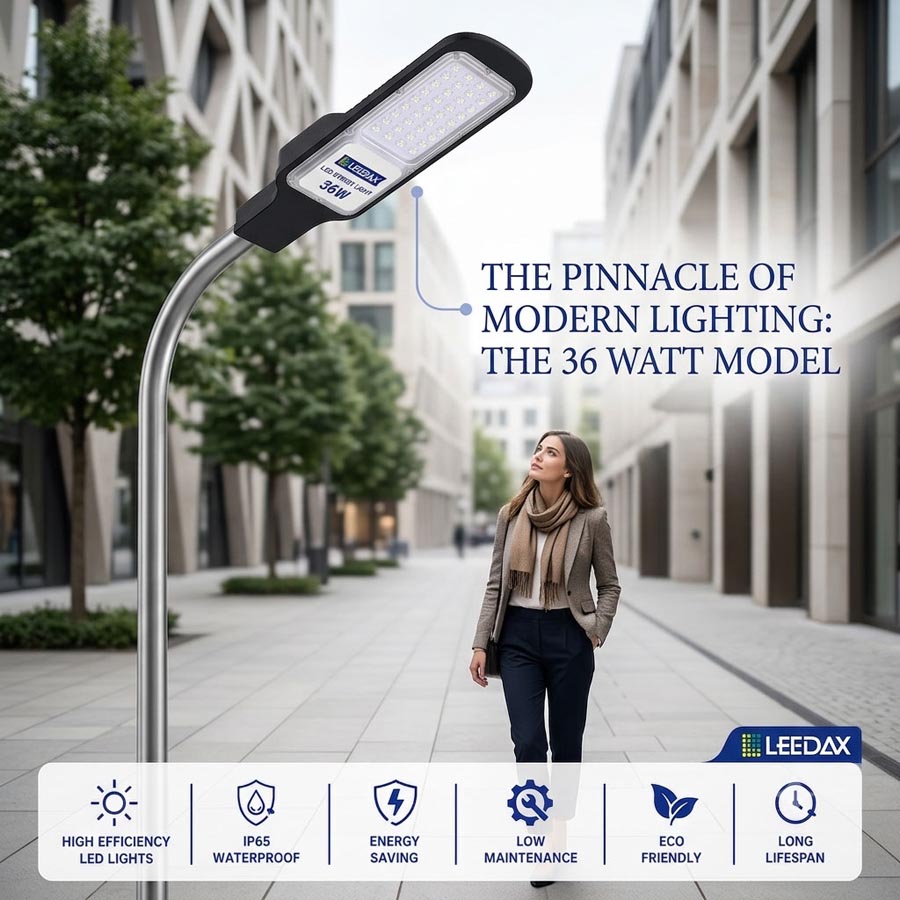

The LEEDAX 36 Watt LED Street Light is designed for a broad range of road, township, municipal, institutional, commercial and industrial outdoor lighting applications.
Secondary & Collector Roads
The 36W LED Street Light is suitable for secondary and collector roads within townships, where wider road coverage requires more illumination than lower-wattage fixtures.
Residential Colony Main Roads
Housing societies and residential colonies can use the 36 Watt Street Light for primary internal roads, approach roads and wider residential lanes.
Commercial Complex Driveways
Commercial complexes, business parks and retail developments can use the fixture for driveways, access roads and vehicle movement areas.
Municipal & Government Road Projects
The product is suitable for municipal corporations, government departments and PWD-related street lighting projects requiring mid-wattage LED street light fixtures.
School, College & Hospital Campuses
Educational institutions, hospitals and large campuses can use the 36W LED Street Light for internal roads, pathways, parking approaches and access routes.
Small Industrial Estates
Industrial estates and warehousing zones can use the fixture for perimeter roads, internal access roads and operational outdoor areas.
Parking Yards & Open Commercial Areas
The product can provide suitable illumination for parking yards, open commercial spaces and vehicle movement zones.
Township & Real Estate Projects
Real estate developers and township developers can use the 36 Watt LED Street Light for internal roads and community infrastructure.
Smart City & Infrastructure Projects
The fixture can be considered for Smart City projects, municipal lighting schemes and infrastructure tenders specifying 36W-category street lighting fixtures.
Solar Street Lighting Systems
The 36W power level can also serve as a middle-range option for solar street lighting systems requiring more output than a 24W fixture.
Electrical Contractors & EPC Projects
Electrical contractors and EPC firms can use the fixture for township, municipal, institutional and commercial street lighting installations.
Overall, the LEEDAX 36 Watt LED Street Light is a versatile solution for secondary roads, township roads, residential colonies, commercial driveways, municipal roads, campuses, industrial estates, parking areas and outdoor infrastructure projects.
